Network Rail completes £2.7m makeover of Forth Viaduct

Region & Route:

Scotland’s Railway: Scotland

Engineers have successfully completed major improvements on the Forth Viaduct in Stirling, extending the lifespan of the bridge and ensuring work on this scale won’t be needed for another 25 years.

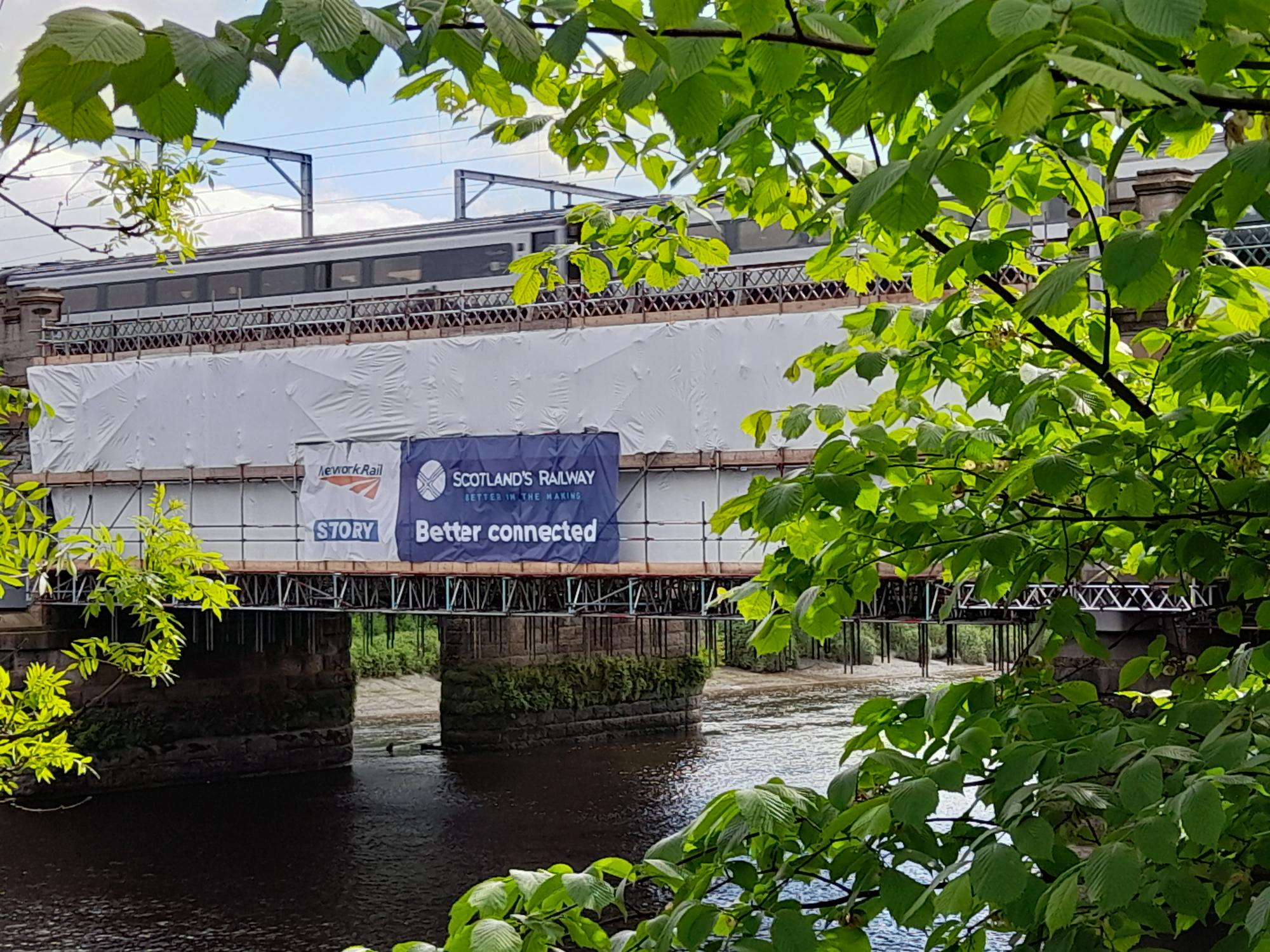

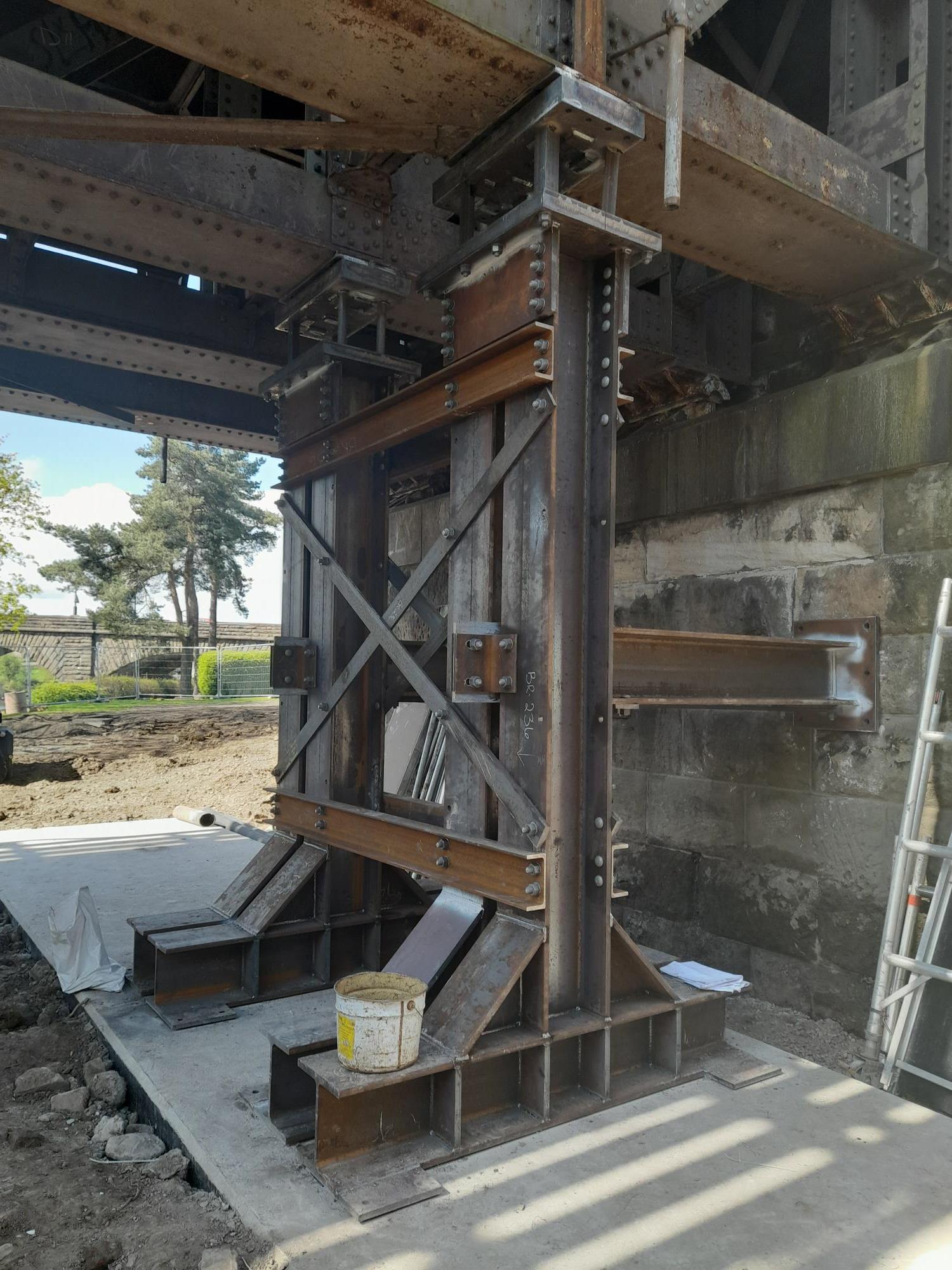

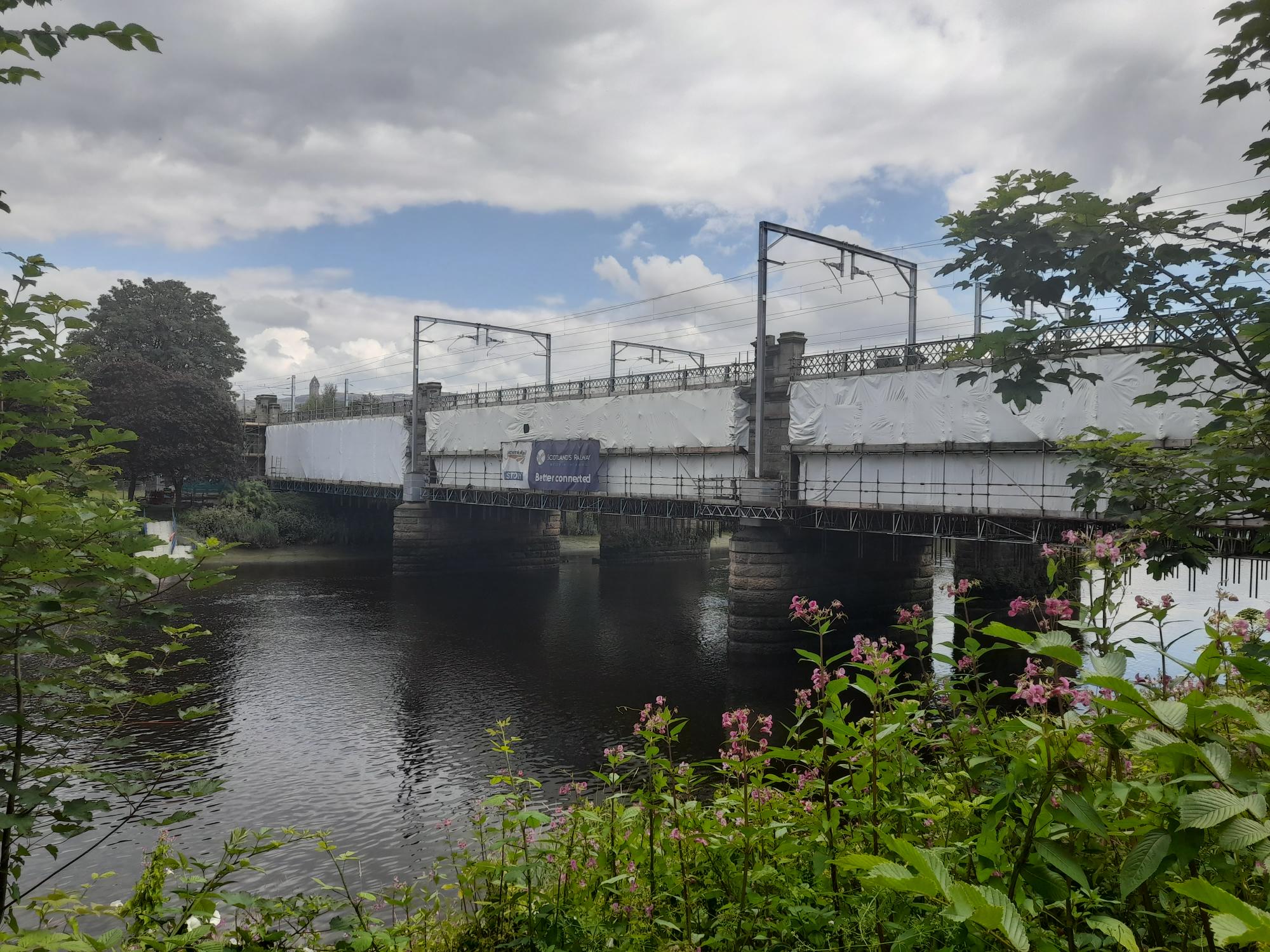

Work began in January when engineers erected scaffolding along 20 metre span of the 10m high bridge. This then allowed the structure to be encapsulated so critical steelwork repairs could take place, including the removal and replacement of 300 steel rivets.

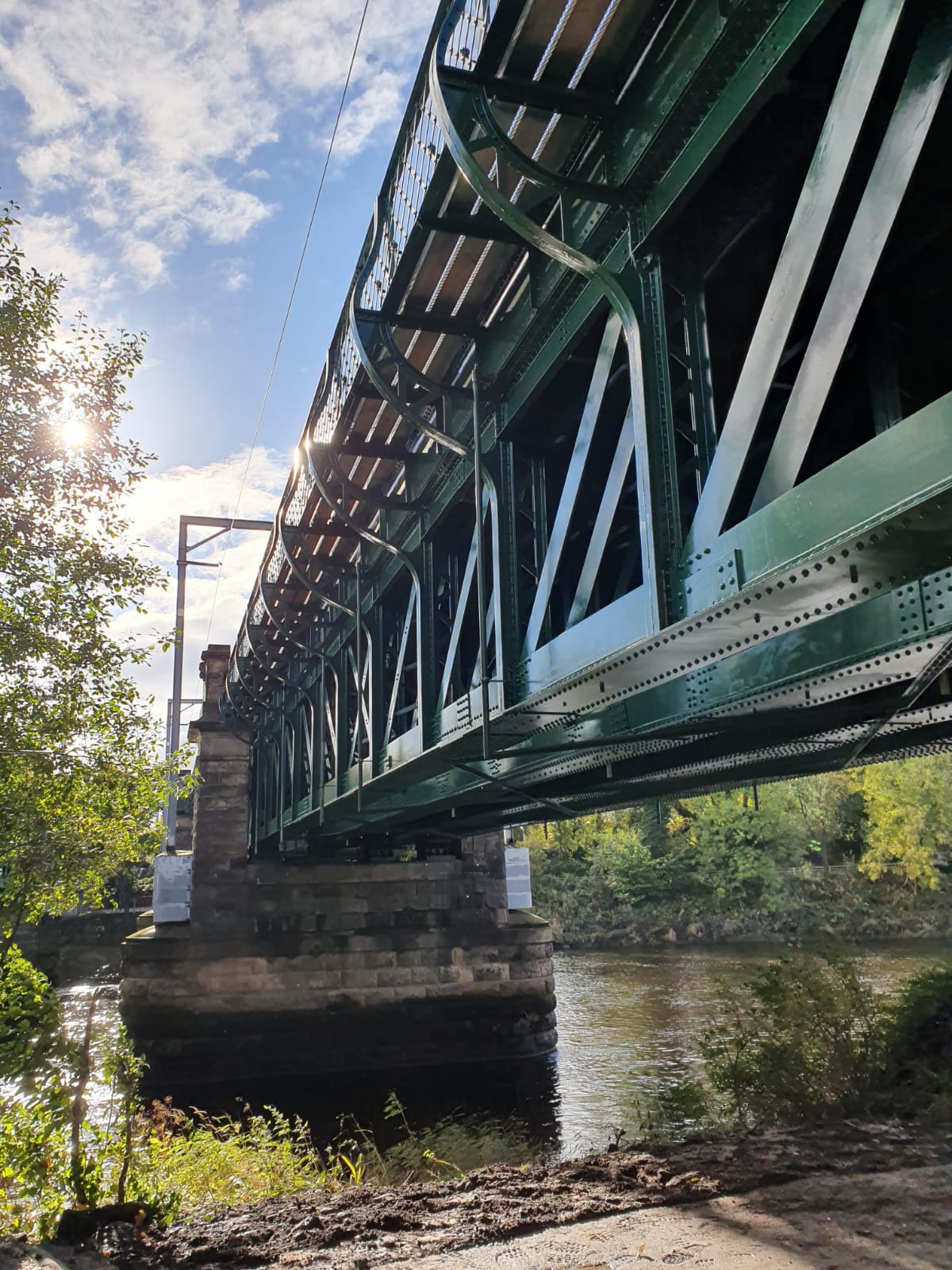

Other elements of work involved grit blasting to remove old paint and rust before then completely repainting the metalwork, with over 4500m² of paint used. More than100 tonnes of grit was used as well as 3000 litres of paint taking in excess of 6000 hours worked to complete the blasting and painting operations.

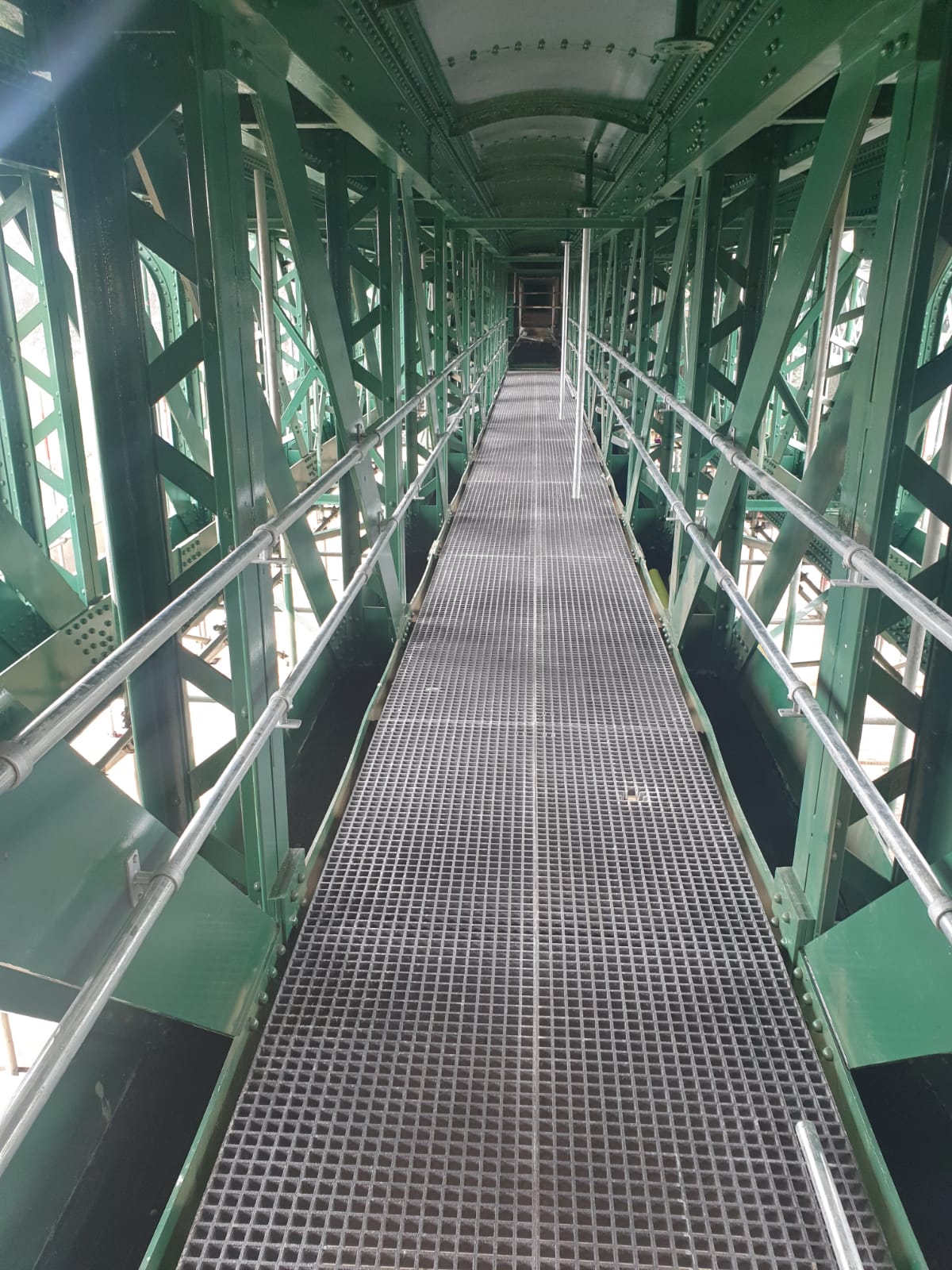

A new permanent walkway was installed through the structure and provides access for Network Rail engineers to undertake general maintenance to the viaduct when required.

With work now complete Lovers Walk, which was closed to traffic for the duration of the project, has fully reopened.

Allison Flanagan, scheme project manager at Network Rail, said: “This work is part of a wider, rolling programme of renewals and improvements that are essential in allowing Network Rail to run a safe and reliable railway for passengers and freight customers.

“The Forth Viaduct was one of our more challenging projects given it spans a river. However, we are well versed is tasks of this nature, delivering time and again improvements that help protect our vital assets for years to come, as we won’t need to re-paint the viaduct for at least another to two decades.

“I would like to thank the community for their patience during delivery of the work, which for safety reasons also meant having a road closure and traffic management in place throughout. We’re very appreciative of their understanding.”

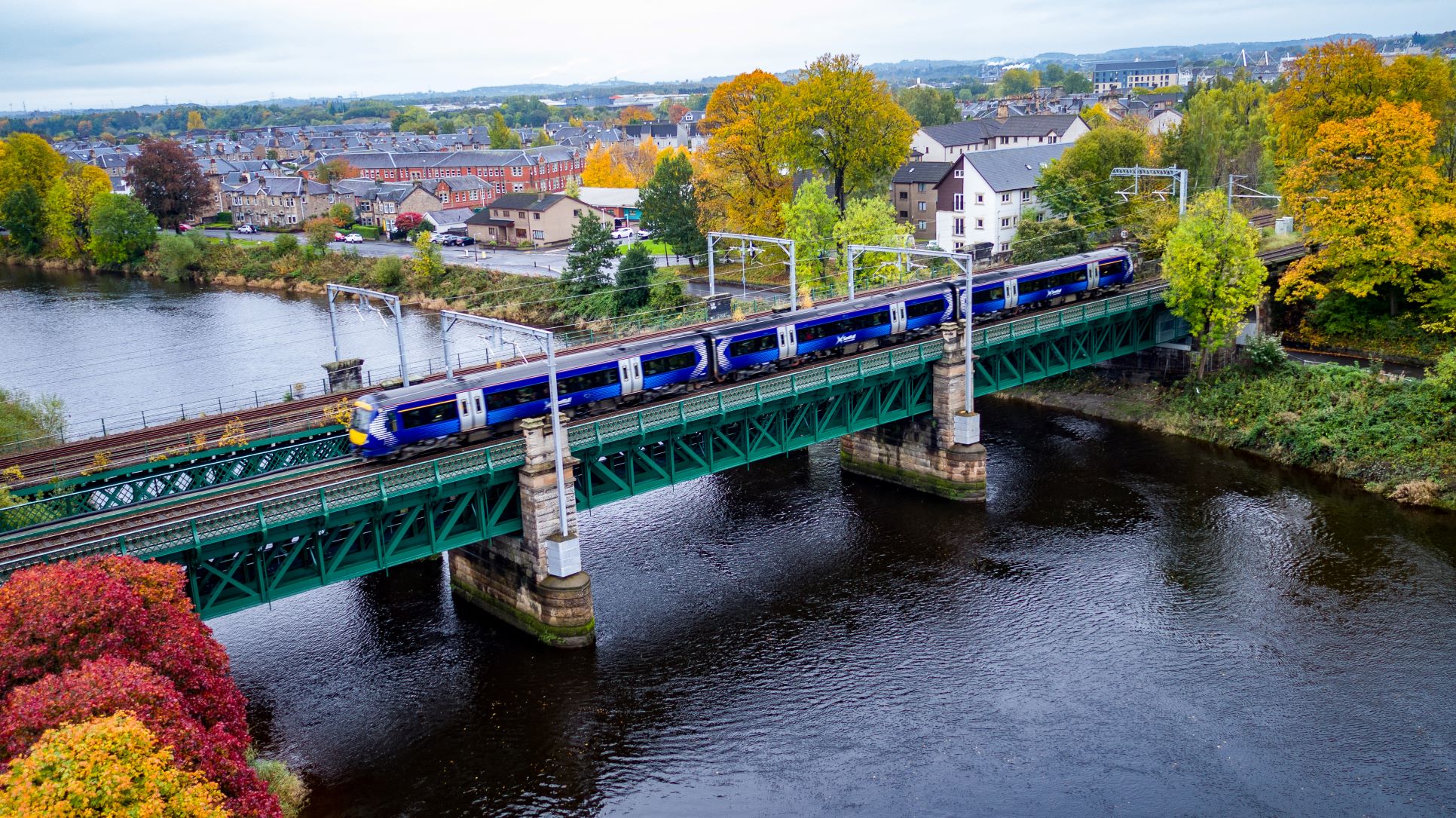

The Forth Viaduct crosses the River Forth in Stirling, near Cambuskenneth,

The project is part of a wide-ranging bridge modernisation programme aimed at protecting and improving Scotland’s Railway, with over £4 billion being invested to increase reliability and improve performance.

The project was delivered by Story Contracting on behalf of Network Rail.

If you have any questions about this work, you can contact Network Rail’s 24-hour national helpline on 03457 11 41 41.  For the latest information and progress updates follow on Twitter @NetworkRailScot or visit www.scotlandsrailway.com
